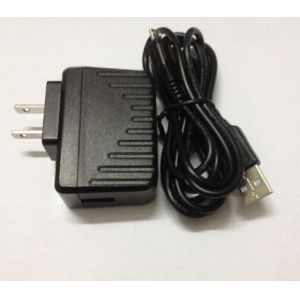

5V 1A 5V2A USB mini charger with micro cable

Product Categories

BTB TECHNOLOGY CO.LTD

Contact Now

Place of Origin : China

Brand Name : BTB

Certification : CE CB UL FCC SAA GS ROHS CCC KC

Model Number : B-001500200

MOQ : 500PCS

Price : $1.0-$1.5

Packaging Details : PE bags + paper box

Delivery Time : 7-10days

Payment Terms : T/T,L/C,Western union,Cash,Paypal

Supply Ability : 200000pcs/week

Contact Now

5V 1A 5V2A USB mini charger with micro cable

Usage	* LED strip ,LED light ,LED table lamp. * Router,amplifier,CCTV camera, * Home appliances ,setup box ,speaker, * Audio & Video equipments, * Wireless communication electronics . * Medical equipments
DC Output Voltage	5V± 5%
DC Output Current	2000mA
DC Output Power	12W
Working efficency	78%
Adapter Size	722831mm (L/W/H)
Efficiency	level 5
Warranty	2years
Certificates approved	TUV CB CE GS ROHS UL/CUL FCC IECS SAA C-tick
Input Rated Voltage	86Vac~264Vac
Input Frequency Range	47Hz~63Hz
Safety protection	output voltage protection (120%-150% rated output current)
	output current protection (150%-180% rated output current)
	short current protection
Ripple and Noise	less than 60Mv at full road with 20MHz bandwidth
DC connector	5.52.111mm (optional)
DC cable	1.5m 2464UL 20AWG cable (optional)
Operating Temperature	0°C - +55°C
Storage Temperature	-20°C - +85°C
Safety Standard	EN60950 EN60601 ESD (EN61000 3-3)
	CAS (60950 ITE/TE,EN60601 Medical) FCC Part 15 subpart B Class 2
	AN/NZS CISPR 22:2006
Turn On Delay Time	less than 3S (AC:110V and full load)
Dielectric Voltage	A IEC320 three pin input---output(FG)3000Vac one minute
Input Current	less than 0.5A
Input Inrush Current	less than 50A
Leakage Current	less than 5mA
Standby power	less than 0.1w
Net Weight	116g/pcs
Gross Weight	13.2kg/carton
Carton Box Size	393129cm

5V 1A 5V2A USB mini charger with micro cable

Welcome to OEM/ODM

Free sample

Sample time : 3-5days

Delivery time:7-10days

Trade terms: FOB shenzhen

Payment : T/T ,L/C,PAYPAL ,Western Union

All product warranty 3 years(One years damage manufacture one to one exchange.)

Printing you LOGO and stick you modle also ok .
